BENZ CNC Units
MONO
SINGLE SIDED ANGLE HEAD - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 15,000 rpm |
| Transmission ratio (n1:n2) | 1:1.2 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 5 kg |
Description
OUTPUT SPINDLE

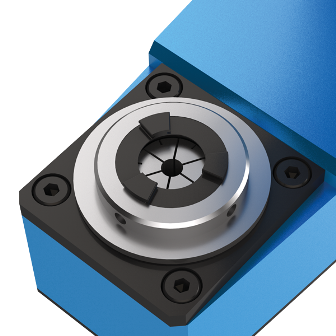

 ER32 |

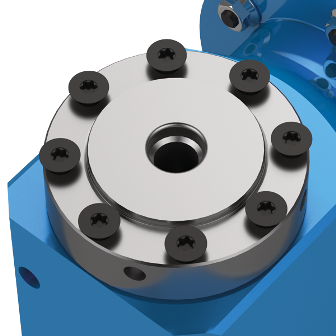

 Centring ∅40 collet chuck ER25A |

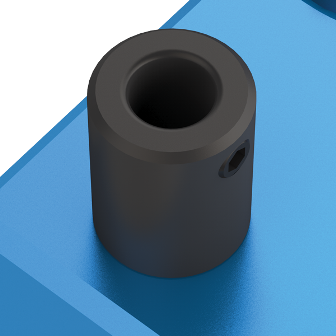

 Centring ∅30 Weldon ∅10 |

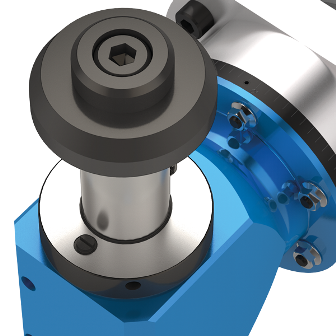

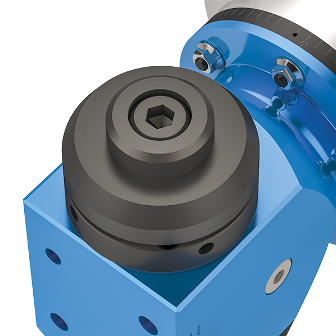

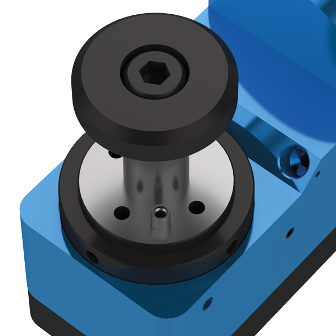

 Arbor ∅30 tool length 1,5-6 mm |
Arbor ∅30 tool length 1,5-16 mm |
 Arbor ∅30 tool length 1,5-33 mm |
 Arbor ∅30 tool length 1,5-52 mm |
 Arbor ∅30 tool length 1,5-63 mm |
 BENZ Solidfix® S3 |
MACHINE CONNECTION
 HSK-F63 BIESSE |
 SK-30 BIESSE |

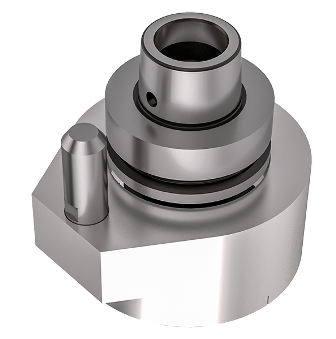

 HSK-F63 Busellato |

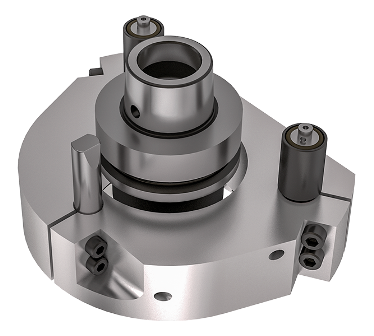

 HSK-F63 FELDER |

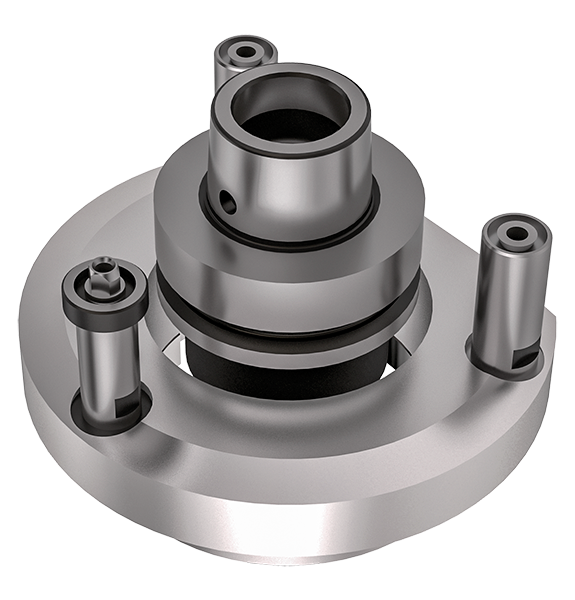

 HSK-F63 HOMAG, WEEKE |

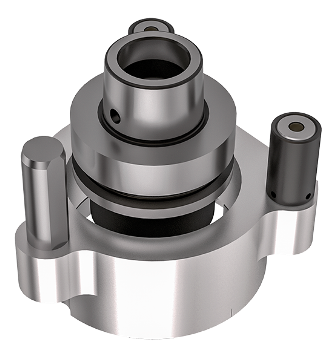

 HSK-F63 IMA |
 HSK-F63 Masterwood |

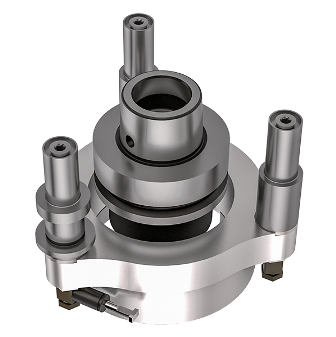

 HSK-F63 SCM |
 HSK-F63 SCM |

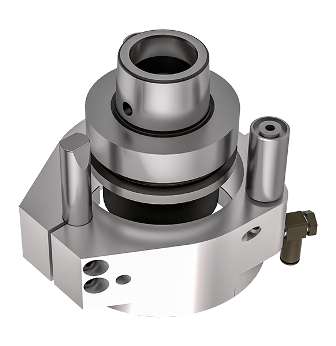

 HSK-F63 WEINIG |
HEAD LENGTH
SHORT
- For cramped working areas in the machine (little distance between the machining table and machine spindle)
- If the changing weight of the tool changer is limited
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
LONG
- For machining tasks with large tool diameters
- For machining tasks on high workpieces
Download
Video
MONO R AT REDUCED SPEED
SINGLE SIDED ANGLE HEAD - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 8,000 rpm |
| Transmission ratio (n1:n2) | 1:0.8 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 5.5 kg |
Description
OUTPUT SPINDLE
 Collet chuck ER25M |
Collet chuck ER32 |
Centring ∅30 Weldon ∅10 |
 Centring ∅40 |
Arbor ∅30 tool length 1,5-6 mm |
Arbor ∅30 tool length 1,5-16 mm |
Arbor ∅30 tool length 1,5-33 mm |
Arbor ∅30 tool length 1,5-52 mm |
Arbor ∅30 tool length 1,5-63 mm |
BENZ Solidfix® S3 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGTH
SHORT
- For cramped working areas in the machine (little distance between the machining table and machine spindle)
- If the changing weight of the tool changer is limited
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
LONG
- For machining tasks with large tool diameters
- For machining tasks on high workpieces
Download
Video
DUO
DOUBLE SIDED ANGLE HEAD DUO - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 15,000 rpm |
| Transmission ratio (n1:n2) | 1:1.2 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 5 kg |
Description
OUTPUT SPINDLE
ER32 |
Centring ∅40 collet chuck ER25A |
Centring ∅30 Weldon ∅10 |
Arbor ∅30 tool length 1,5-6 mm |
Arbor ∅30 tool length 1,5-16 mm |
Arbor ∅30 tool length 1,5-33 mm |
Arbor ∅30 tool length 1,5-52 mm |
Arbor ∅30 tool length 1,5-63 mm |
BENZ Solidfix® S3 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGTH
SHORT
- For cramped working areas in the machine (little distance between the machining table and machine spindle)
- If the changing weight of the tool changer is limited
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
LONG
- For machining tasks with large tool diameters
- For machining tasks on high workpieces
Download
Video
QUATTRO
FOUR SIDED ANGLE HEAD QUATTRO - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 15,000 rpm |
| Transmission ratio (n1:n2) | 1:1.2 |
| Max. drive torque M2 milling spindle | 25 Nm |
| Max. drive torque M2 drilling spindle | 10 Nm |
| Weight | about 6 kg |
Description
OUTPUT SPINDLE
Collet chuck ER32 |
+ | Collet chuck ER25M |
|
Centring ∅40 collet chuck ER25A |
+ | Collet chuck ER25M |
|
BENZ Solidfix® S3 |
+ | Collet chuck ER25M |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGTH
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
Download
Video
FLEX D

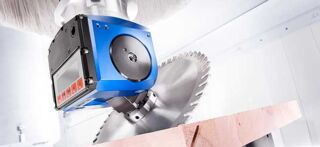

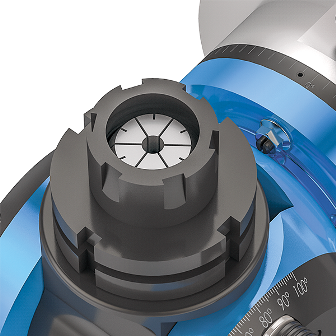

ADJUSTABLE ANGLE HEAD WITH DIGITAL DISPLAY FLEX D - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 15,000 rpm |
| Transmission ratio (n1:n2) | 1:1 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 8 kg |
Description
OUTPUT SPINDLE
Collet chuck ER25M |
Collet chuck ER32 |
 Centring ∅30 Collet chuck ER25M |
Centring ∅30 Weldon ∅10 |
Centring ∅40 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGTH
SHORT
- For cramped working areas in the machine (little distance between the machining table and machine spindle)
- If the changing weight of the tool changer is limited
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
Download
Video
FORTE
LOCK RECESS TRIMMING UNIT FORTE - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 15,000 rpm |
| Transmission ratio (n1:n2) | 1:1.2 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 5,5 kg |
Description
OUTPUT SPINDLE
Collet chuck ER32 |
+ |  Collet chuck ER16A |
Centring ∅40 collet chuck ER25A |
+ | Collet chuck ER16A |
||
Centring ∅30 Weldon ∅10 |
+ | Collet chuck ER16A |
 Centring ∅30 Whistle notch ∅16 / ∅20 |
+ | Collet chuck ER16A |
||
BENZ Solidfix® S3 |
+ | Collet chuck ER16A |
 Arbor ∅20 tool length 6 - 43 mm |
||||
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGTH
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
Download
Video
ANGULO
CORNER NOTCHING UNIT ANGULO - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 10,000 rpm |
| Transmission ratio (n1:n2) | 1:1.3 |
| Max. drive torque M2 | 20 Nm |
| Weight | about 4.5 kg |
Description
OUTPUT SPINDLE
Collet chuck ER16A |
Collet chuck ER25M |
 Centring ∅16 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGHT
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
LONG
- For machining tasks with large tool diameters
- For machining tasks on high workpieces
Download
Video
SUBIO
UNDERSURFACE UNIT SUBIO - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 10,000 rpm |
| Transmission ratio (n1:n2) | 1:1 |
| Max. drive torque M2 | 8 Nm |
| Weight | about 7 kg |
Description
OUTPUT SPINDLE
 Collet chuck ER25A |
 Weldon ∅12 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
HEAD LENGHT
MEDIUM
- The universal length: Covers the majority of machining tasks and tools
Additional projections and lengths on request
Download
MULTI H3
MULTI SPINDLE HEAD MULTI H3 - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 12,000 rpm |
| Transmission ratio (n1:n2) | 1:4 |
| Max. drive torque M2 | 2 Nm |
| Weight | about 4 kg |
| Nesting applications | Design is suitable |
Description
OUTPUT SPINDLE
 Whistle Notch ∅6 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
SPINDLE DISTANCE
- 20 mm
- 32 mm
- other distances on request
Download
Video
MULTI H3+
MULTI SPINDLE HEAD MULTI H3+ - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 10,000 rpm |
| Transmission ratio (n1:n2) | 1:1.37 |
| Max. drive torque M2 | 5 Nm |
| Weight | about 4 kg |
Description
OUTPUT SPINDLE
 Weldon ∅10 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
SPINDLE DISTANCE
- 20
- 22
- 22,5
- 25
- 25,4
- 32
- other distances on request
Download
Video
MULTI V
MULTI SPINDLE HEAD MULTI V - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 12,000 rpm |
| Transmission ratio (n1:n2) | 1:1 |
| Max. drive torque M2 | 5 Nm |
| Weight | about 5.5 kg |
Description
OUTPUT SPINDLE
Collet chuck ER25M |
Collet chuck ER32 |
Weldon ∅10 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
NUMBER OF SPINDLES
- 3
- 5
- 7
- 9
- 11
SPINDLE DISTANCE
- 20
- 21.5
- 25
- 25.4
- 30
- 32
- 40
- 50
- 60
- 100
Addtional spindle distances / numbers of spindles / drilling patterns on request
Download
Video
MOULDER C
MOULDER HEAD MOULDER C - PREMIUM LINE
| Lubrication | Oil Bath |
| Max. drive speed n2 | 10,000 rpm |
| Transmission ratio (n1:n2) | 1:0.9 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 7.5 kg |
| Max. tool diamter | ∅125 mm |
Description
OUTPUT SPINDLE
 Arbor ∅30 tool length 100 mm |
Arbor ∅30 tool length 120 mm |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
Download
Video
MOULDER
MOULDER HEAD MOULDER - PREMIUM LINE
| Lubrication | Oil Bath |
| Max. drive speed n2 | 10,000 rpm |
| Transmission ratio (n1:n2) | 1:0.7 |
| Max. drive torque M2 | 25 Nm |
| Weight | about 10 kg |
| Max. tool diamter | ∅180 mm |
Description
OUTPUT SPINDLE
Arbor ∅30 tool length 120 mm |
Arbor ∅35 tool length 120 mm |
Arbor ∅35 tool length 170 mm |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
Download
Video
FLOATING
FLOATING TRIMMING UNIT - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 18,000 rpm |
| Transmission ratio (n1:n2) | 1:1 |
| Max. drive torque M2 | 10 Nm |
| Weight | about 6 kg |
Description
OUTPUT SPINDLE
BENZ Solidfix® S3 |
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
INTERNAL DIAMTER OF FLOATING RING
- 70
- 94
- 105
- 122
Download
Video
COLLEVO
BELT SANDING UNIT COLLEVO - CLASSIC LINE
| Lubrication | Grease |
| Max. drive speed n2 | 2,700 rpm |
| Transmission ratio (n1:n2) | 1:0.9 |
| Max. drive torque M2 | 10 Nm |
| Weight | about 9 kg |
Description
SANDING BELT
- Width: 100 mm
- Length: 560 mm
MACHINE CONNECTION
HSK-F63 BIESSE |
SK-30 BIESSE |
HSK-F63 Busellato |
HSK-F63 FELDER |
HSK-F63 HOMAG, WEEKE |
HSK-F63 IMA |
HSK-F63 Masterwood |
HSK-F63 SCM |
HSK-F63 SCM |
HSK-F63 WEINIG |
Download
