Setting Machines
SV 45 MN
Small Manual Setting Machine. Possibility to choose the setting: left/right or left/right/straight. Adjustment of the feed pitch, of the setting height and of the tooth bending degree; self centring clamps. Workbench model.
- Band Saw Width: 10 - 50 mm
- Band Saw Thickness: 0,5 - 1 mm
- Setting Pitch: 5 - 25 mm
SV 80 MN
Manual Setting Machine for band saw blades. Inexpensive and easy-to-use. Possibility to choose the setting: left/right or left/right/straight. Adjustment of the feed pitch, of the setting height and of the tooth bending degree. Workbench model.
- Band Saw Width: 10 - 80 mm
- Band Saw Thickness: 0,5 - 1,5 mm
- Setting Pitch: 5 - 35 mm

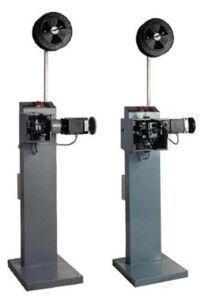

SV 80 ATV and SV 45 ATV
Automatic Setters for Bandsaw Blades. SV 80 ATV | SV 45 ATV
- Band Saw Width: 10 - 80 mm | 10 - 50 mm
- Band Saw Thickness: 0,5 - 1,5 mm | 0,5 - 1,0 mm
- Setting Pitch: 5 - 35 mm | 5 - 25 mm
- Speed: 140 tpm | 175 tpm
Dino Band Saw Setter Manual
The patented Dino Bandsaw Setter is a compact, accurate machine for raker setting blades from 13mm up to 55mm width with tooth pitches up to 30mm
Fully optimise the performance of your bandsaw blades
The patented Dino Saw Setting Machine makes the perfect companion to Dinasaw’s bandsaw sharpener. This machine allows you to fully optimise the performance of your bandsaw blades either in the field or workshop.
Fast
At up to 350 teeth per minute the Dino Saw Setter can accurately reset your blades in less than two minutes!
Simple
The Dino Saw Setter can cope with blades up to 55mm (2 1/8″ ) wide and needs no adjustment when changing between different blade thicknesses. The unique clamping mechanism ensures the blade is held securely even at high operating speeds.
Easy to use
Rotating the handle indexes three teeth for every turn, setting one left, one right and leaving one, (the raker tooth), straight. The amount of set is accurately determined by screws in the setting yolk and measured with the setting gauge supplied.
Light and efficient
The Dino Saw Setter weighs less than 10kg and can set raker style teeth between 0 – 28mm in a single pass. No need to set both sides individually – just fit the blade and turn the handle. The all steel construction with hardened cams and ball bearings ensure a long and trouble free service life.
