Wood moisture meters Merlin

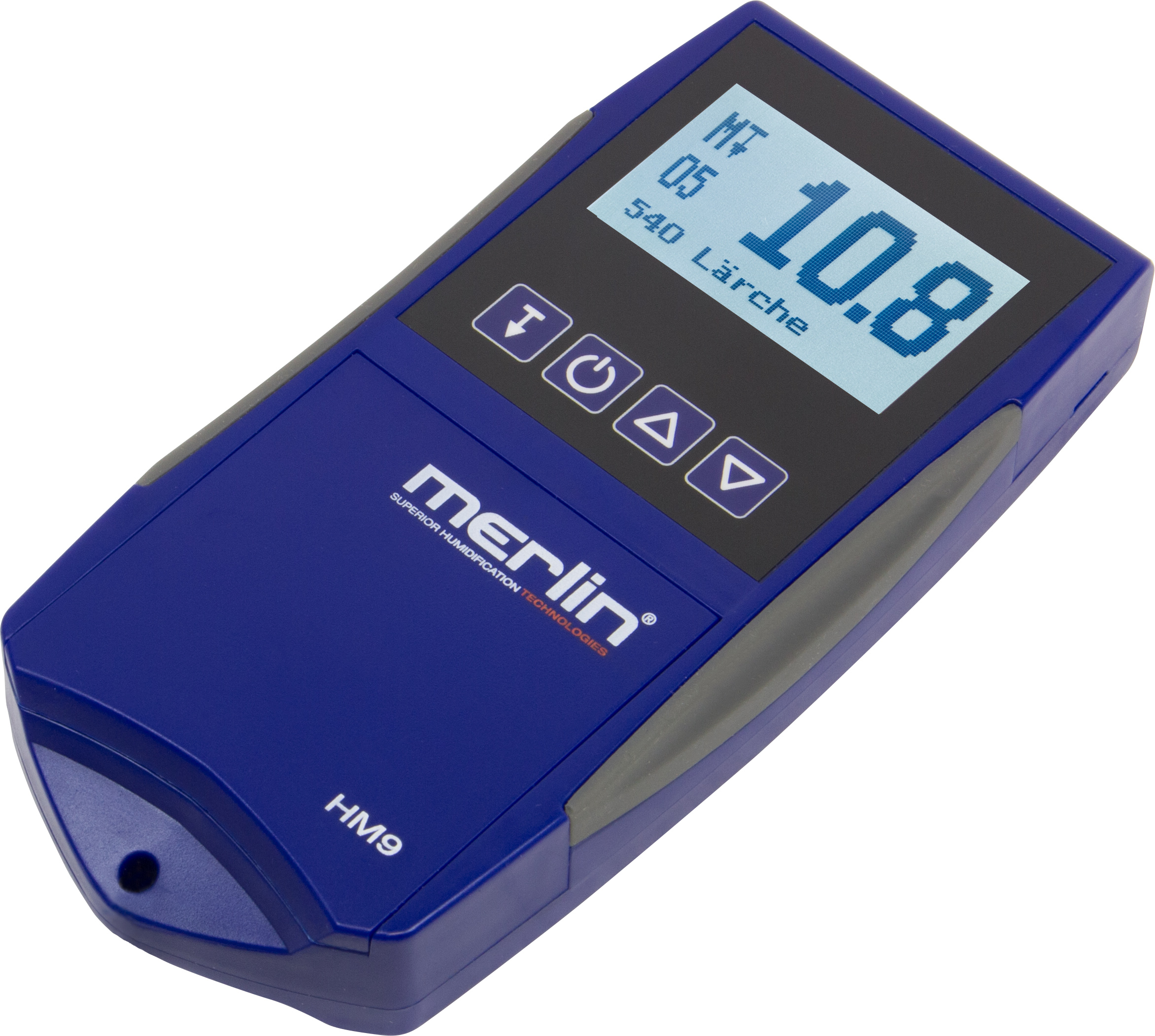

Merlin wood moisture meters HM9 WS series by merlin®
Non-destructive wood moisture meters
With different measuring depths for different applications.
Below you will find the different devices.
- 21 wood groups pre-programmed
- Easy handling
- Illuminated display
- Non-destructive capacitive measurement
- Immediate measurement value display
- Made in Austria - Ergonomic and high-quality workmanship
- Wide density range selectable: 175 - 1.075 kg/m³
- Fast, precise results
- Non-destructive measurement of material moisture
- Individual, simple characteristic curve selection
- Handy small format
- Large digital display (selected devices)
- Automatic switch-off (selected devices)
- Automatic temperature adjustment of ambient and material temperature
- Battery operation
- Data recording (selected devices)
- Various accessories available
If the minimum wood thickness is not met, the wood can be stacked to achieve it.
It is recommended to measure towards the core (due to residual moisture, as drying takes place from the outside to the inside).
HM9 WS1 wood moisture meter for Veneer by merlin®
Minimum wood thickness: 0,5 mm
Measuring depth: 0,5 - 3 mm
Special Features:
Wood thickness preselection from 6 different measuring depths (0.5 mm, 0.75 mm, 1 mm, 1.25 mm, 2 mm, 3 mm) for even more precise measurement of veneers
HM9 WS5 wood moisture meter for Parquet by merlin®
Minimum wood thickness: 5 mm
Measuring depth: 8 mm
HM9 WS13 wood moisture meter for Furniture by merlin®
Minimum wood thickness: 13 mm
Measuring depth: 20 mm
HM9 WS25 wood moisture meter for Cutting by merlin®
Minimum wood thickness: 25 mm
Measuring depth: 40 mm
Special Features:
Measured value storage, hold function of the measured value, display of the temperature in °C / °F
HM9 DUO wood moisture meter for Parquet & Cutting by merlin®
Minimum wood thickness: Frontside 5 mm / Backside 25 mm
Measuring depth: Frontside 8 mm / Backside 40 mm
Special Features:
Combined device consisting of the HM9 WS5 and HM9 WS25: two sensors in one device. A very narrow sensor plate on the front side for the narrowest surfaces.
Merlin wood moisture meters EVO Serie by Merlin®
With connection for external sensors
- High measurement: +/- 1%, calibrated acc. DIN standards
- Wood moisture and temperature measurement
- 21 pre-programmed wood groups
- Robust housing
- Display of the moisture value including evaluation,
temp., measurement depth, dry density &
wood group
- Connection of optional external sensors possible
- Quick selection of the wood species or dry density
- Calibration function and calibration certificate
- HOLD function for freezing the measured value
- Illuminated display
- Automatic shut-off and battery check
- Includes rubber protection, soft case & 4 x 1.5 V AA batteries
- Fast, precise results
- Non-destructive material moisture measurement
- Individual, easy-to-use characteristic curve selection
- Handy, compact format
- Large digital display (selected devices)
- Automatic shut-off (selected devices)
- Automatic temperature adjustment of ambient and material temperatures
- Battery operation
- Data recording (selected devices)
- Various accessories available
EVO FC wood moisture meter for Parquet by merlin®
Minimum wood thickness: 5 mm
Measuring depth: 8 mm
Special Features:
Hold function of the measured value, display of the temperature in °C / °F, measurement of the humidity in combination with optionally available external sensors possible
EVO WW wood moisture meter for Furniture by merlin®
Minimum wood thickness: 13 mm
Measuring depth: 20 mm
Special Features:
Measured value storage, hold function of the measured value, display of temperature in °C / °F
EVO SM wood moisture meter for Cutting by merlin®
Minimum wood thickness: 25 mm
Measuring depth: 40 mm
Special Features:
Measured value storage, hold function of the measured value, display of the temperature in °C / °F
