Pressurized glue tanks

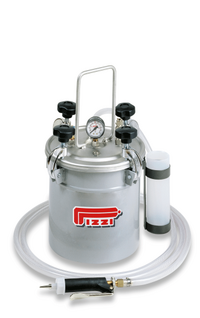

A5 Range Cod. 8901 for PVA
Pressurized glue tank for PVA glues with 1 glue gun with adjustable glue flow and universal pointed nozzle.
Entirely made of stainless steel.
Glue capacity 5 kg.
Max pressure 5 bar.
Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by extrusion.
Each pressurized glue tank can be fitted with 1 or 2 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.
All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.

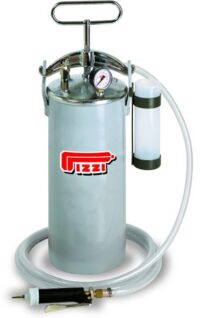

A8 Range Cod. 9001 for PVA
Iron tank with full inner plastic lining and chromed brass lid.
Glue capacity 8 kg.
Max pressure 5 bar.
Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by extrusion.
Each pressurized glue tank can be fitted with 1, 2 or 3 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.
All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.
This system can be supplied without glue gun (cod. 9000) and also, with a second type of glue gun with anatomic grip (cod. 9004).

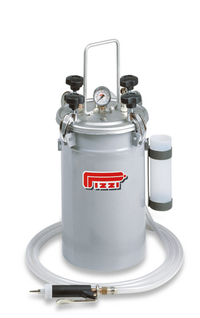

A12 Range Cod. 9012 for PVA
Pressurized glue tank for PVA glues with 1 glue gun with adjustable glue flow and universal pointed nozzle.
Entirely made of stainless steel.
Glue capacity 12 kg.
Max pressure 5 bar.
Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by extrusion.
Each pressurized glue tank can be fitted with 1, 2 or 3 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.
All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.

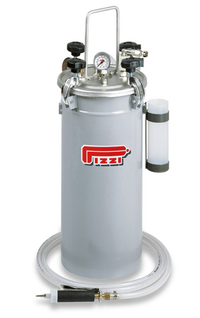

A20 Range Cod. 9021 for PVA
Pressurized glue tank for PVA glues with 1 glue gun with adjustable glue flow and universal pointed nozzle.
Entirely made of stainless steel.
Glue capacity 20 kg.
Max pressure 5 bar.
Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by extrusion.
Each pressurized glue tank can be fitted with 1, 2 or 3 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.
All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.
easyAPP Cod. 0165 for PSA
Pressurized gluing system for metered glue dosing with 1 glue gun with anatomic grip and dual function for glue application
Entirely made of stainless steel.
Tank capacity 12 kg.
Max pressure 5 bar.
Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
For professional, precise, fast and clean glue application (PVAc), as well as in any other glue application where a controlled, constant and accurate dosing is needed, both for small batches, custom-made parts and mass processing operations, aiming to optimize the working process in any gluing station.
For solid wood, timber products and panel processing.
For the furniture and housing industry and the joinery.
The pneumatic control guarantees always the same and right glue amount, constantly.
This range of metered gluing systems presents 2 helpful standard adjustments:
1) Glue flow/ amount adjustment;
2) Glue dispensing time, therefore, open time of the glue gun.

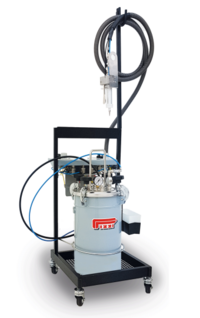

easyAPP Cod. 0565 for PSA
Pressurized gluing system for metered glue dosing with 1 glue gun with straight grip and dual function for glue application
Entirely made of stainless steel.
Tank capacity 12 kg.
Max pressure 5 bar.
Recommended viscosity
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
For professional, precise, fast and clean glue application (PVAc), as well as in any other glue application where a controlled, constant and accurate dosing is needed, both for small batches, custom-made parts and mass processing operations, aiming to optimize the working process in any gluing station.
For solid wood, timber products and panel processing.
For the furniture and housing industry and the joinery.
The pneumatic control guarantees always the same and right glue amount, constantly.
This range of metered gluing systems presents 2 helpful standard adjustments:
1) Glue flow/ amount adjustment;
2) Glue dispensing time, therefore, open time of the glue gun.
KLEBKON Cod. 9810 for PSA
Pressurized glue-tank completely in stainless steel for the application of solvent-based contact adhesives and PSA (Pressure-sensitive adhesives).
Entirely made of stainless steel.
Glue capacity 12 kg.
Max pressure 5 bar.
Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.
Model 9810, with no. 1 8802 glue gun with adjustable glue flow and standard pointed nozzle.
4-metre, solvent resistant, spiral hose in Rilsan.
Pressurized gluing system in stainless steel for the application of neoprene solvent-based contact adhesives in solvent mixtures and pressure-sensitive adhesives.
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by extrusion.
SPRAYCOLL Cod. 1094 for spraying
Professional pressurized glue-tanks, for glues and adhesives application by spraying, by atomizing the product to be used.
Entirely made of stainless steel.
Glue capacity 12 kg.
Max pressure 5 bar.
Glue specifications
Use only and exclusively low-medium viscosity adhesives, those which, according to each individual glue and adhesive manufacturer, can be easily sprayed with a spray gun, in relation to their specific product characteristics.
Recommended viscosity sprayable adhesives, low-medium viscosity.
The range of products that can be applied, in relation to different viscosities, is however wide and is easily managed using the different needle and nozzle kits available.
Working temperature: 20°C / 68°F.
High-quality stainless steel pressurized tanks designed and developed to apply glues and adhesives, by spraying, by atomizing the product to be used.
This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.
The adhesive is dispensed by spray.
The system comprises a tank and cover with its handle, all in stainless steel (of high thickness) secured by 4 CE standard fastenings, a 4-metre, solvent resistant, twin-line hose air-adhesive and a spray gun, model 0196, with 1.8 nozzle.
